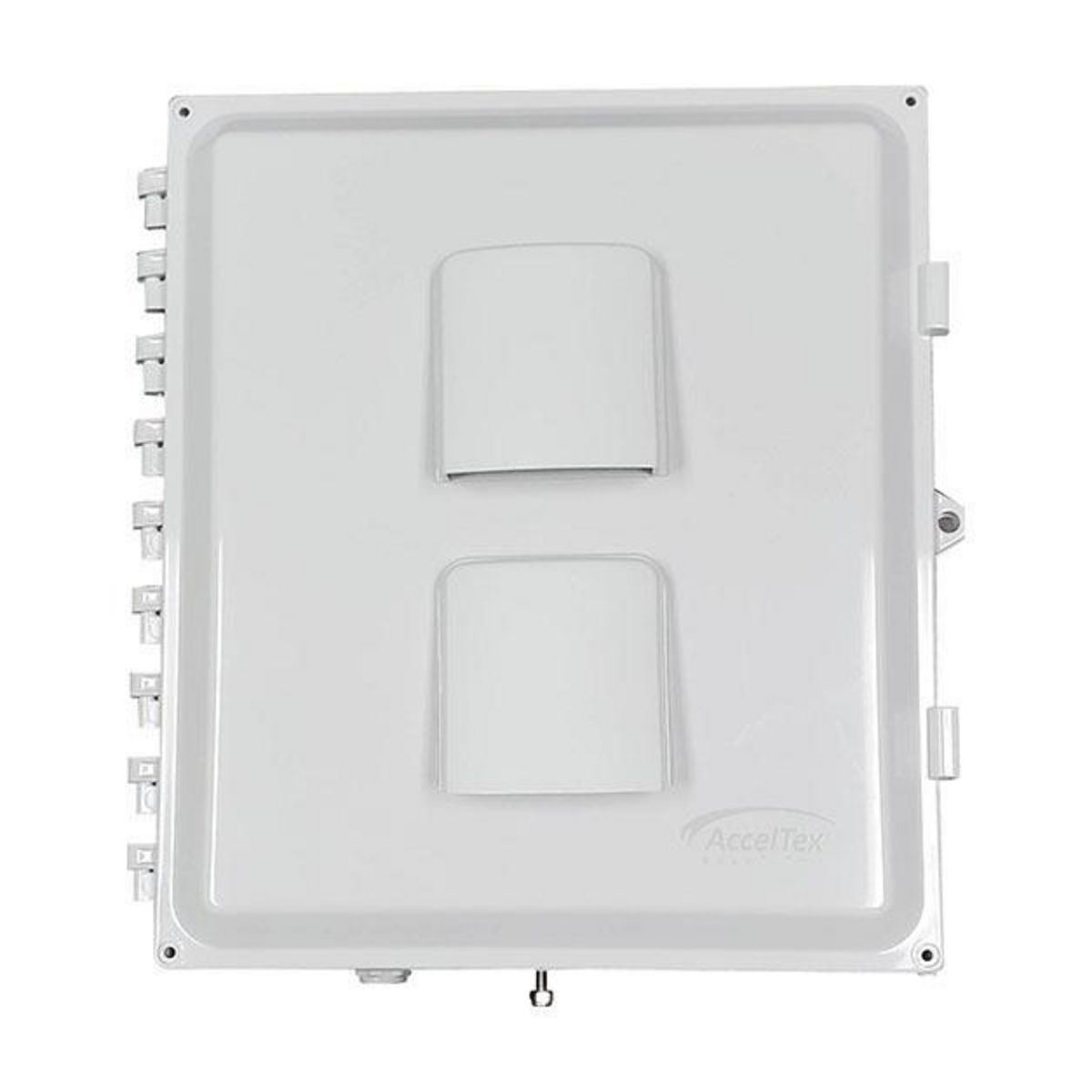

ATS-00250 former catalog number (ATS-14126P-S-L-6N-CG-POE-HC). The AccelTex Solutions 14x12x6 Heated & Cooled PoE Enclosure for 6 Element N-Style External Antenna allows an access point to be installed in an outdoor or other temperature-limiting environment.
The enclosure system components include:
| Dimensions | 355.6 × 304.8 × 152.4 mm |
|---|---|
| Vendor | AccelTex Solutions |
| Country of Origin | United States |
| Colour | Grey |
| Cord Grip | Yes |
| Door type | Solid |
| Indoor/Outdoor | Indoor/Outdoor |
| Installation Type | T-Bar |
| Lock Type | Latch |
| Material | Polycarbonate |
| Antenna Connection Holes | 6 |
| Operating Temperature | -40 to 120 °C |
| NEMA Rating | NEMA 3R |
| PoE | 802.3af, 802.3at, 802.3bt |
| Enclosure Size | 14x12x6 |
| IP Rating | IP24 |
| Integrated Antenna | No |
ATS-00256 (former catalog number ATS-14126P-S-L-6T-CG-POE-HC). The AccelTex Solutions 14″x12″x6″ Heated & Cooled PoE Enclosure for a 6-Element RPTNC External Antenna allows an access point to be installed in an outdoor or other temperature-limiting environment.
The enclosure system components include:
ATS-00247 (former catalog number ATS-14126P-S-L-4T-CG-POE-HC). The AccelTex Solutions Heated & Cooled PoE enclosure allows an access point to be installed in an outdoor or other temperature-limiting environment. The heater, fan and AP are all powered by a single PoE cable run from the network switch. The enclosure ships ready for an AP and external antenna installation. This version is for a 4-Element RPTNC External Antenna.
The enclosure system components include:
ATS-00243 (former catalog number ATS-14126P-S-L-4S-CG-POE-HC). The AccelTex Solutions Heated & Cooled PoE enclosure allows an access point to be installed in an outdoor or other temperature-limiting environment. The heater, fan and AP are all powered by a single PoE cable run from the network switch. The enclosure ships ready for an AP and external antenna installation. This version is for a 4-Element RPSMA External Antenna.
The enclosure system components include:
ATS-00265 (former catalog number ATS-14126P-S-L-CG-POE-HC). The AccelTex Solutions Heated & Cooled PoE enclosure allows an access point to be installed in an outdoor or other temperature-limiting environment. The heater, fan and AP are all powered by a single PoE cable run from the network switch. The enclosure ships ready for an AP and external antenna installation.
ATS-00253 (former catalog number ATS-14126P-S-L-6S-CG-POE-HC). The AccelTex Solutions 14″x12″x6″ Heated & Cooled PoE Enclosure for a 6-Element RPSMA External Antenna allows an access point to be installed in an outdoor or other temperature-limiting environment.
The enclosure system components include:
ATS-00240 (former catalog number ATS-14126P-S-L-4N-CG-POE-HC). The AccelTex Solutions Heated & Cooled PoE enclosure allows an access point to be installed in an outdoor or other temperature-limiting environment. The heater, fan and AP are all powered by a single PoE cable run from the network switch. The enclosure ships ready for an AP and external antenna installation. This version is for a 4-Element N-Style External Antenna.
The enclosure system components include:
ATS-00253 (former catalog number ATS-14126P-S-L-6S-CG-POE-HC). The AccelTex Solutions 14″x12″x6″ Heated & Cooled PoE Enclosure for a 6-Element RPSMA External Antenna allows an access point to be installed in an outdoor or other temperature-limiting environment.
The enclosure system components include:
ATS-00240 (former catalog number ATS-14126P-S-L-4N-CG-POE-HC). The AccelTex Solutions Heated & Cooled PoE enclosure allows an access point to be installed in an outdoor or other temperature-limiting environment. The heater, fan and AP are all powered by a single PoE cable run from the network switch. The enclosure ships ready for an AP and external antenna installation. This version is for a 4-Element N-Style External Antenna.
The enclosure system components include:
ATS-00243 (former catalog number ATS-14126P-S-L-4S-CG-POE-HC). The AccelTex Solutions Heated & Cooled PoE enclosure allows an access point to be installed in an outdoor or other temperature-limiting environment. The heater, fan and AP are all powered by a single PoE cable run from the network switch. The enclosure ships ready for an AP and external antenna installation. This version is for a 4-Element RPSMA External Antenna.
The enclosure system components include:
