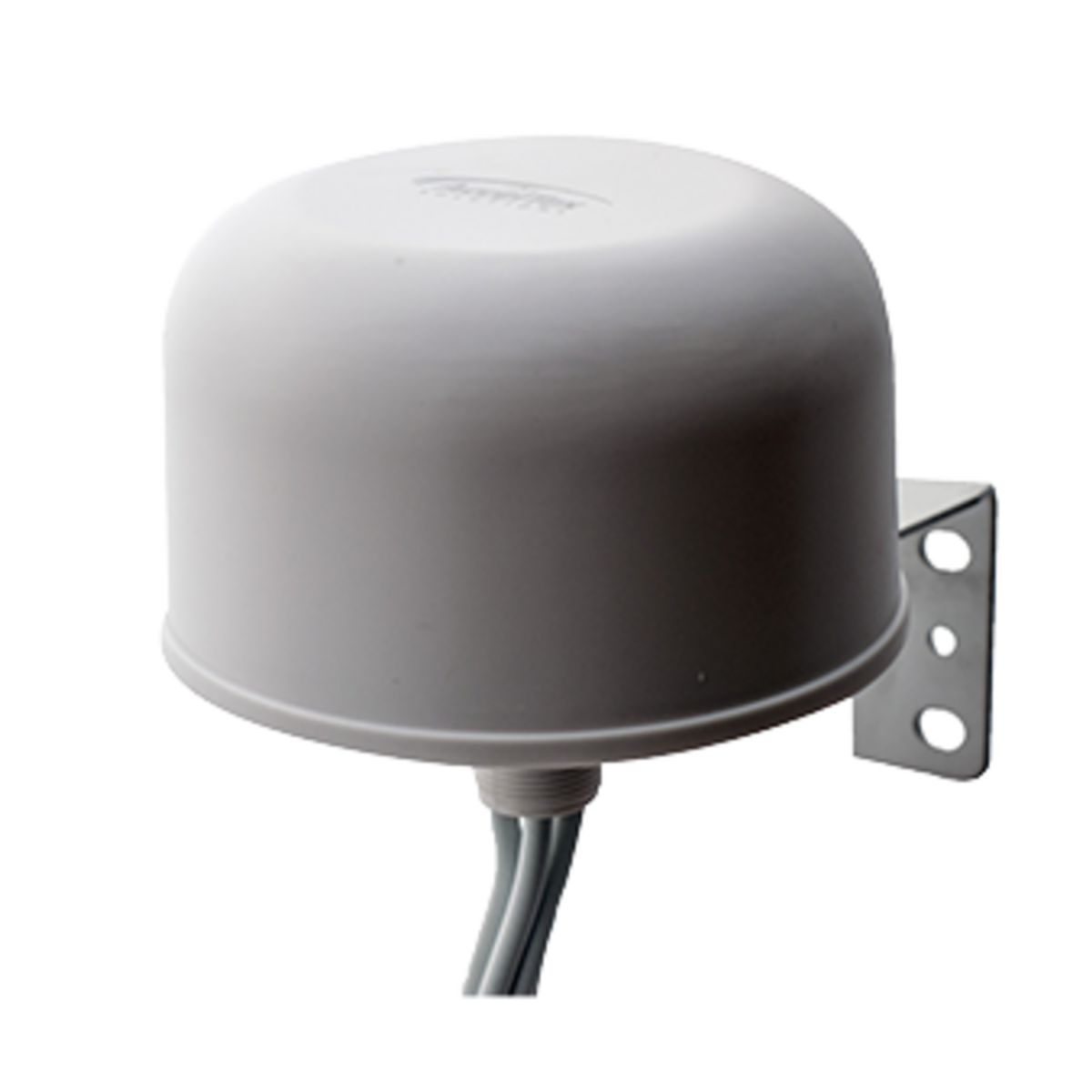

ATS-03278 (former catalog number ATS-OO-2456-466-6NP-36). The AccelTex Solutions Tri-Band, 6-Element, omnidirectional antenna with N-Style Plug connectors is a perfect complement to an enterprise-class AP to achieve desired coverage in your indoor or outdoor space. Each antenna element is optimized for operation on 2.4, 5 and 6 GHz. This antenna comes with our integrated flush mount for surface mounting through a thin wall, ceiling or enclosure door and also ships with a wall and pole mount kit. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications. *Available in black upon request. *Outdoor and connectorized antenna applications in the 6 GHz band in the U.S. require pending FCC updates to the equipment approvals process. See the Document FCC OET Labs 6 GHz guidance. (Insert link to here: https://apps.fcc.gov/eas/comments/GetPublishedDocument.html?id=455&tn=713821)
| Dimensions | 119.4 × 119.4 × 71.1 mm |
|---|---|
| Vendor | AccelTex Solutions |
| Country of Origin | China |
| Antenna Gain | 4/6/6 dBi |
| Beamwidth - Horizontal | 360˚ |
| Beamwidth - Vertical | 105˚/75°/75° |
| Cable Type | ATS-200 |
| Connector Type | N-Style |
| Frequency Rating | 2.4-2.48/5.15-5.85/6-7.125 GHz |
| Antenna Type | Omni Antenna |
| Indoor/Outdoor | Indoor/Outdoor |
| Number of Leads | 0 |
| Polarisation | Vertical |
| Wi-Fi Standard | 802.11ax (Wi-Fi 6) |
ATS-01060 (former catalog number ATS-OO-2456-466-6RPSP-36). The AccelTex Solutions Tri-Band, 6-Element, omnidirectional antenna with RPSMA Plug connectors is a perfect complement to an enterprise-class AP to achieve desired coverage in your indoor or outdoor space. Each antenna element is optimized for operation on 2.4, 5 and 6 GHz. This antenna comes with our integrated flush mount for surface mounting through a thin wall, ceiling or enclosure door and also ships with a wall and pole mount kit. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications. *Available in black upon request. *Outdoor and connectorized antenna applications in the 6 GHz band in the U.S. require pending FCC updates to the equipment approvals process. See the Document FCC OET Labs 6 GHz guidance. (Insert link to here: https://apps.fcc.gov/eas/comments/GetPublishedDocument.html?id=455&tn=713821)
Emulates links up to 1 Gbps with two SFP+ or RJ45 1 Gbps ports, suitable for higher bandwidth applications.
Emulates complex networks up to 1 Gbps with two SFP+ or RJ45 1 Gbps ports, ideal for standard network testing needs.
ATS-01060 (former catalog number ATS-OO-2456-466-6RPSP-36). The AccelTex Solutions Tri-Band, 6-Element, omnidirectional antenna with RPSMA Plug connectors is a perfect complement to an enterprise-class AP to achieve desired coverage in your indoor or outdoor space. Each antenna element is optimized for operation on 2.4, 5 and 6 GHz. This antenna comes with our integrated flush mount for surface mounting through a thin wall, ceiling or enclosure door and also ships with a wall and pole mount kit. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications. *Available in black upon request. *Outdoor and connectorized antenna applications in the 6 GHz band in the U.S. require pending FCC updates to the equipment approvals process. See the Document FCC OET Labs 6 GHz guidance. (Insert link to here: https://apps.fcc.gov/eas/comments/GetPublishedDocument.html?id=455&tn=713821)
