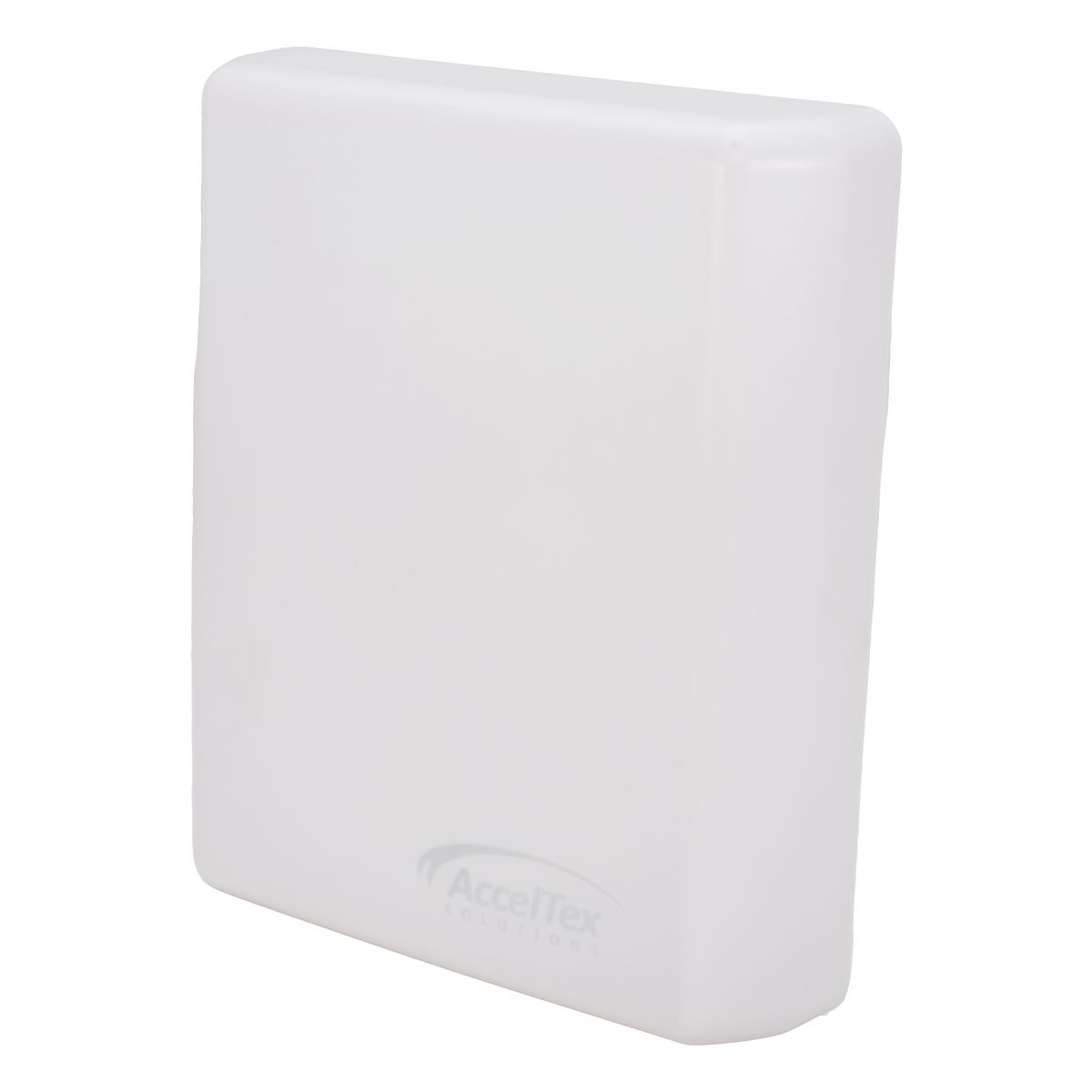

The AccelTex Solutions Tri-Band Indoor/Outdoor Patch Antenna with 4 RPSMA connectors is a perfect complement to an enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on 2.4, 5 and 6 GHz. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired. *Outdoor and connectorized antenna applications in the 6 GHz band in the U.S. require pending FCC updates to the equipment approvals process (see Section III of the FCC OET Labs 6 GHz guidance.)
| Dimensions | 208.3 × 177.8 × 43.7 mm |
|---|---|
| Vendor | AccelTex Solutions |
| Country of Origin | China |
| Antenna Gain | 4/7/7 dBi |
| Beamwidth - Horizontal | 80°/60°/50° |
| Beamwidth - Vertical | 70°/70°/70° |
| Cable Type | ATS-195 |
| Connector Type | RPSMA |
| Frequency Rating | 2.4-2.48/5.15-5.85/6-7.125 GHz |
| Antenna Type | Patch Antenna |
| Indoor/Outdoor | Indoor/Outdoor |
| Number of Leads | 0 |
| Polarisation | 2 Horizontal, 2 Vertical |
| Wi-Fi Standard | 802.11ax (Wi-Fi 6) |
The AccelTex Solutions Tri-Band Indoor/Outdoor Patch Antenna with 4 N-STYLE connectors is a perfect complement to an enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on 2.4, 5 and 6 GHz. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired. *Outdoor and connectorized antenna applications in the 6 GHz band in the U.S. require pending FCC updates to the equipment approvals process (see Section III of the FCC OET Labs 6 GHz guidance.)
Emulates complex networks up to 1 Gbps with two SFP+ or RJ45 1 Gbps ports, ideal for standard network testing needs.
The AccelTex Solutions Tri-Band Indoor/Outdoor Patch Antenna with 4 N-STYLE connectors is a perfect complement to an enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on 2.4, 5 and 6 GHz. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired. *Outdoor and connectorized antenna applications in the 6 GHz band in the U.S. require pending FCC updates to the equipment approvals process (see Section III of the FCC OET Labs 6 GHz guidance.)
Emulates links up to 1 Gbps with two SFP+ or RJ45 1 Gbps ports, suitable for higher bandwidth applications.
