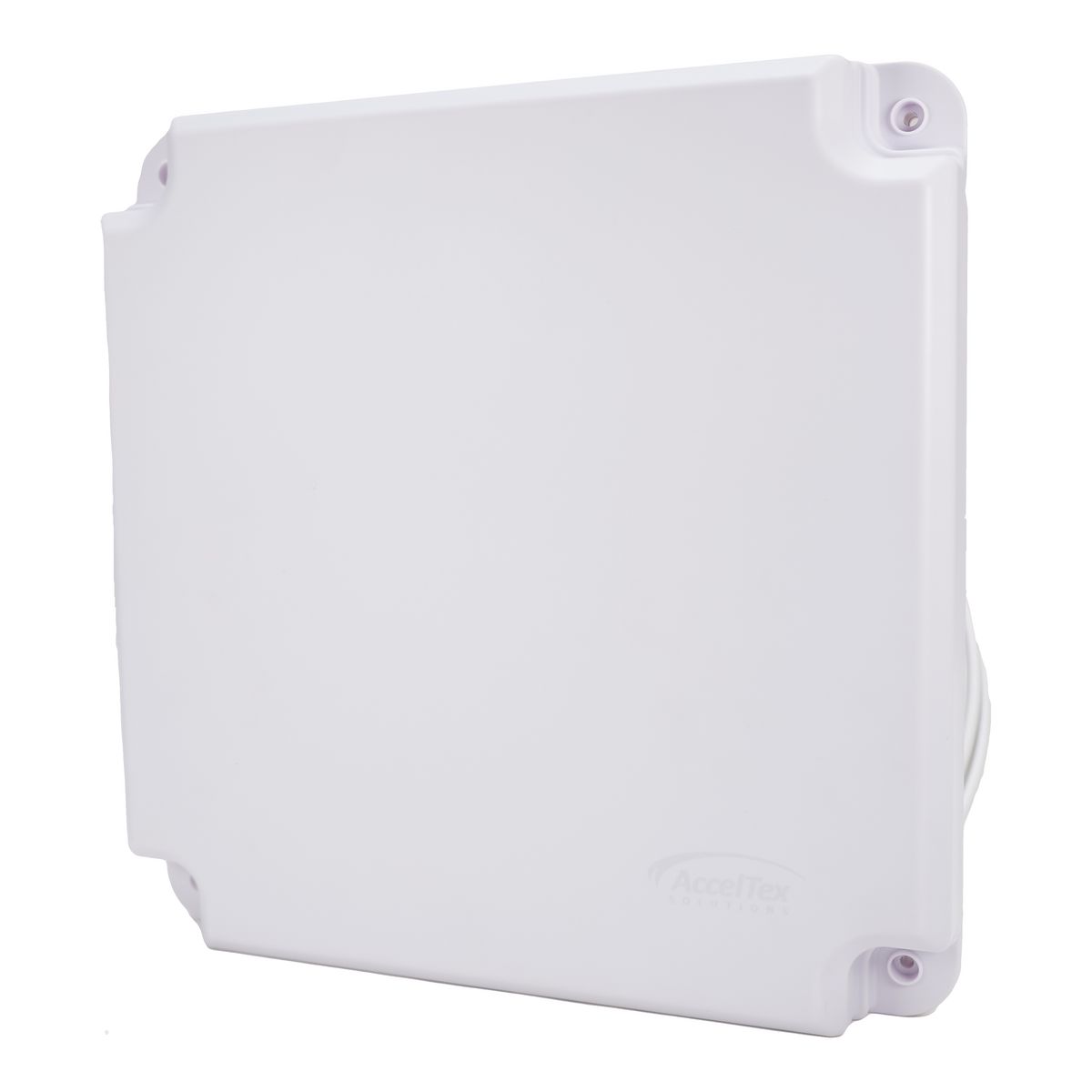

The AccelTex Solutions Tri-Band Indoor/Outdoor Patch Antenna with 4 RPSMA connectors is a perfect complement to an enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on 2.4, 5 and 6 GHz. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.
| Dimensions | 300 × 300 × 47 mm |
|---|---|
| Vendor | AccelTex Solutions |
| Country of Origin | China |
| Antenna Gain | 8/10/10 dBi |
| Beamwidth - Horizontal | 60°/50°/40° |
| Beamwidth - Vertical | 60°/50°/40° |
| Cable Type | ATS-195 |
| Connector Type | RPSMA |
| Frequency Rating | 2.4-2.48/5.15-5.85/6-7.125 GHz |
| Antenna Type | Patch Antenna |
| Indoor/Outdoor | Indoor/Outdoor |
| Number of Leads | 0 |
| Polarisation | 2 Horizontal, 2 Vertical |
| Wi-Fi Standard | 802.11ax (Wi-Fi 6), 802.11ac (Wi-Fi 5), 802.11n (Wi-Fi 4) |
The AccelTex Solutions Tri-Band Indoor/Outdoor Patch Antenna with 4 N-Style connectors is a perfect complement to an enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on 2.4, 5 and 6 GHz. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired. *Outdoor and connectorized antenna applications in the 6 GHz band in the U.S. require pending FCC updates to the equipment approvals process (see Section III of the FCC OET Labs 6 GHz guidance.)
The AccelTex Solutions Tri-Band Indoor/Outdoor Patch Antenna with 4 N-Style connectors is a perfect complement to an enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on 2.4, 5 and 6 GHz. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired. *Outdoor and connectorized antenna applications in the 6 GHz band in the U.S. require pending FCC updates to the equipment approvals process (see Section III of the FCC OET Labs 6 GHz guidance.)
