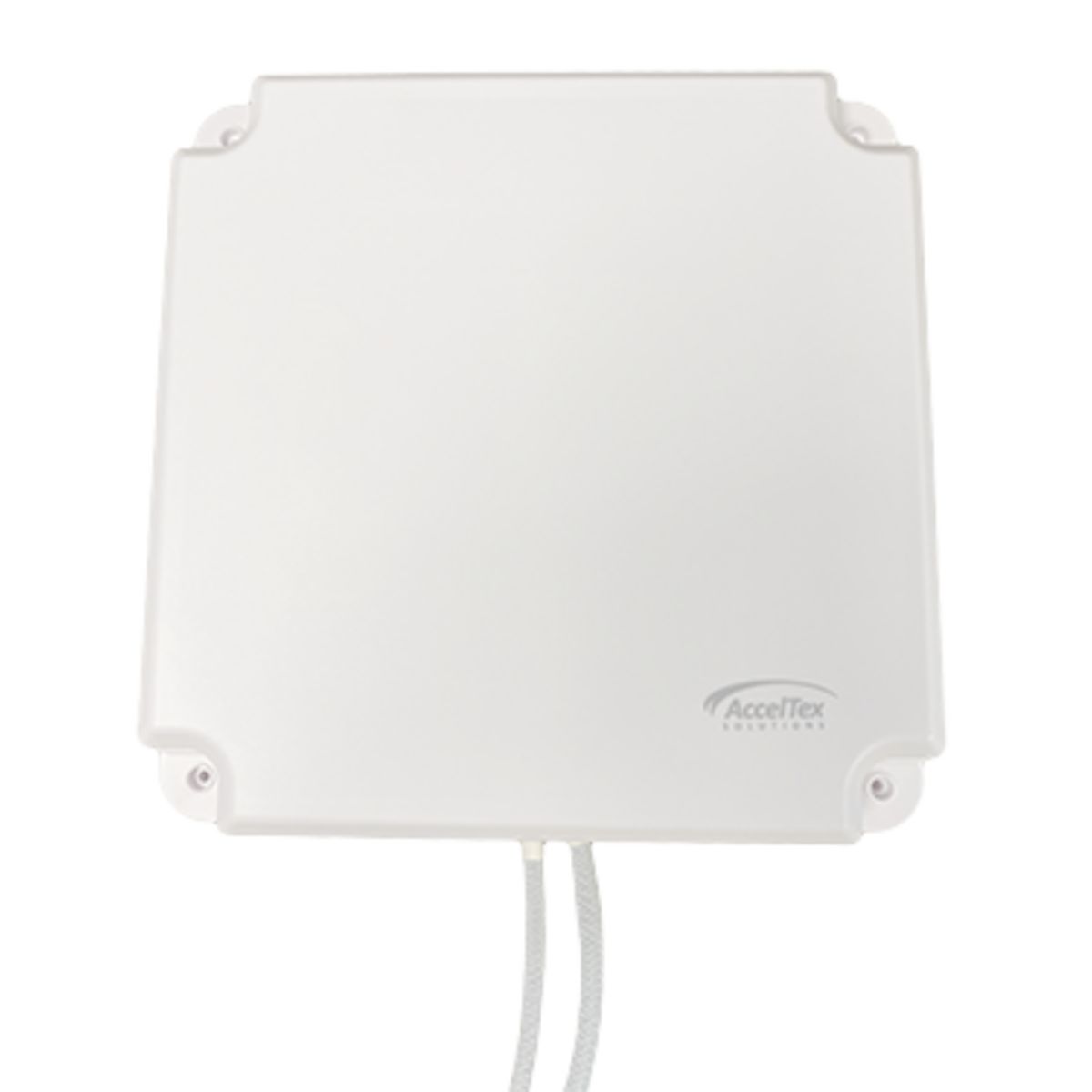

ATS-03276 (former catalog number ATS-OP-2456-81010-6RPSP-36). The AccelTex Solutions Tri-Band, 6-Element, patch antenna with RPSMA Plug connectors is a perfect complement to an enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation in the 2.5 GHz, 5 GHz and 6 GHz bands. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired. *Available in black upon request. **Outdoor and connectorized antenna applications in the 6 GHz band in the U.S. require pending FCC updates to the equipment approvals process. See Section III of Document FCC OET Labs 6 GHz guidance. (Insert link to here: https://apps.fcc.gov/eas/comments/GetPublishedDocument.html?id=455&tn=713821)
| Dimensions | 391.2 × 391.2 × 39.9 mm |
|---|---|
| Vendor | AccelTex Solutions |
| Country of Origin | China |
| Antenna Gain | 8/10/10 dBi |
| Beamwidth - Horizontal | 65°/45°/40° |
| Beamwidth - Vertical | 65°/45°/40° |
| Cable Type | ATS-200 |
| Connector Type | RPSMA |
| Frequency Rating | 2.4-2.48/5.15-5.85/6-7.125 GHz |
| Antenna Type | Patch Antenna |
| Indoor/Outdoor | Indoor/Outdoor |
| Number of Leads | 0 |
| Polarisation | 3 Horizontal, 3 Vertical |
| Wi-Fi Standard | 802.11be (Wi-Fi 7), 802.11ax (Wi-Fi 6) |
ATS-03262 (former catalog number ATS-OP-2456-81010-6NP-36). The AccelTex Solutions Tri-Band, 6-Element, patch antenna with N-Style Plug connectors is a perfect complement to an enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation in the 2.5 GHz, 5 GHz and 6 GHz bands. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired. *Available in black upon request. **Outdoor and connectorized antenna applications in the 6 GHz band in the U.S. require pending FCC updates to the equipment approvals process. See Section III of Document FCC OET Labs 6 GHz guidance. (Insert link to here: https://apps.fcc.gov/eas/comments/GetPublishedDocument.html?id=455&tn=713821)
