Additional information
| Dimensions | 119.4 × 71.1 mm |
|---|---|
| Vendor | AccelTex Solutions |
| Country of Origin | China |
| Antenna Gain | 4/6 dBi |
| Beamwidth - Horizontal | 360? |
| Beamwidth - Vertical | 144?/55? |
| Cable Length | 910mm |
| Cable Type | RG58 |
| Connector Type | DART |
| Installation Hole Diameter | 1 in |
| Pole Diameter | 2 in |
| Frequency Rating | 2.4-2.5/4.9-5.85 GHz |

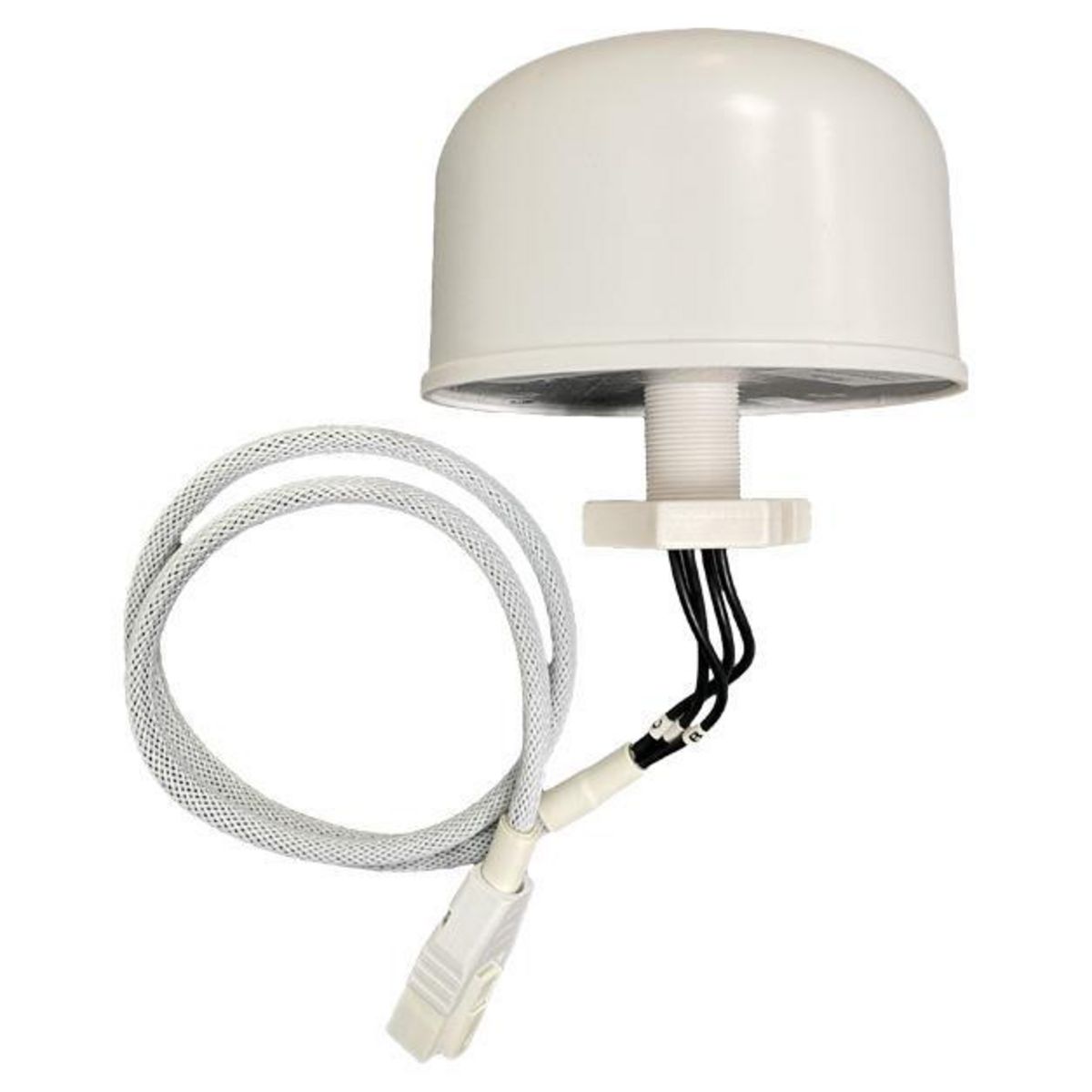

| Antenna Type | Omni Antenna |
| Impedance | 50 Ohms |
| Indoor/Outdoor | Indoor/Outdoor |
| Input Power - Max | 100 W |
| Installation Type | Threaded Bolt with Nut and Wall/Pole Mount (included) |
| Isolation Loss | ?20dB |
| Radome Material | ASA |
| Number of Leads | 4 |
| Operating Temperature | -40 to 65 ?C |
| Polarisation | Vertical |
| Protection Type | DC Grounded |
| Standards | 802.11ac (Wi-Fi 5), 802.11n (Wi-Fi 4) |
| Voltage Ratio | < 2.0:1 |
| Windage | 130 mph (210 km/h) |
