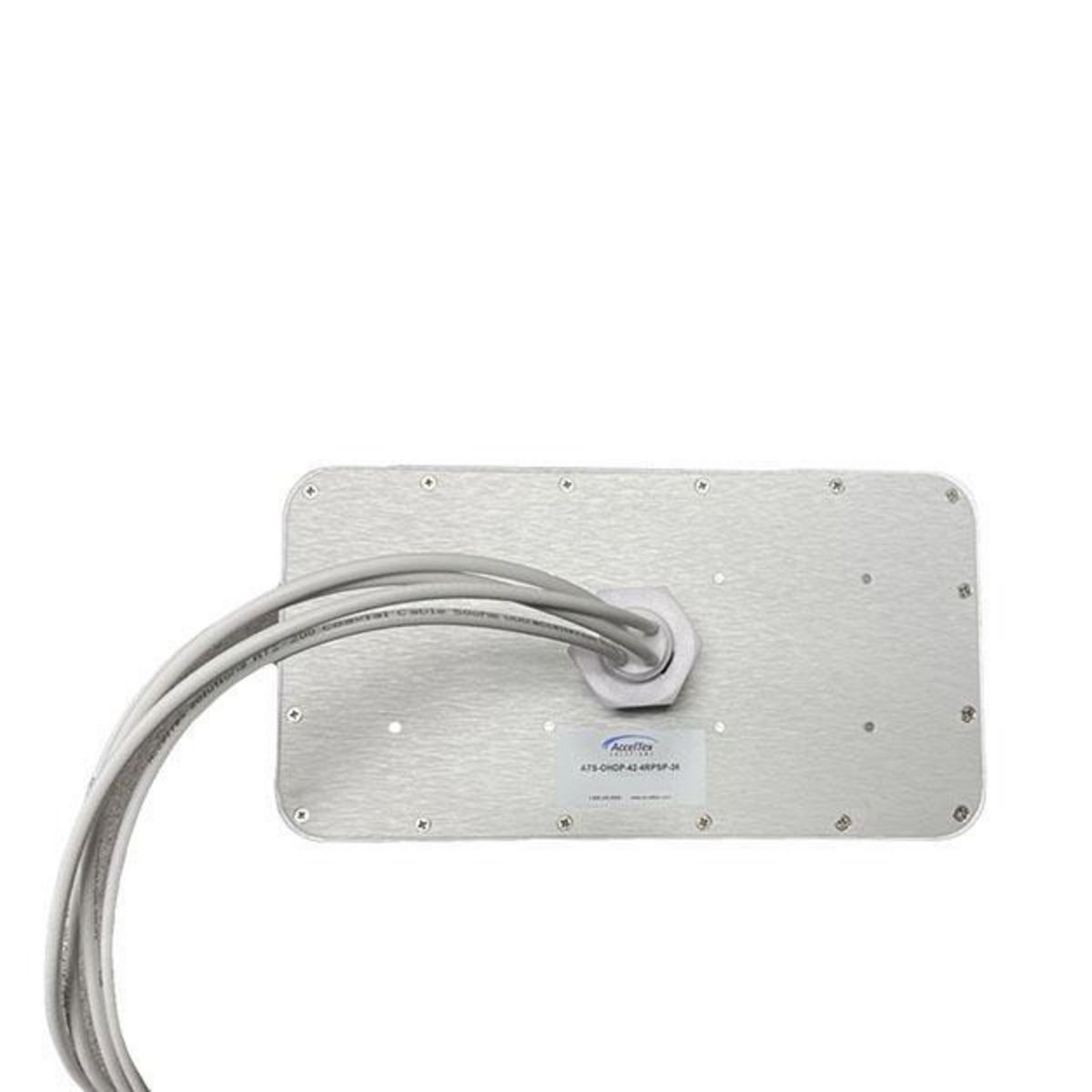

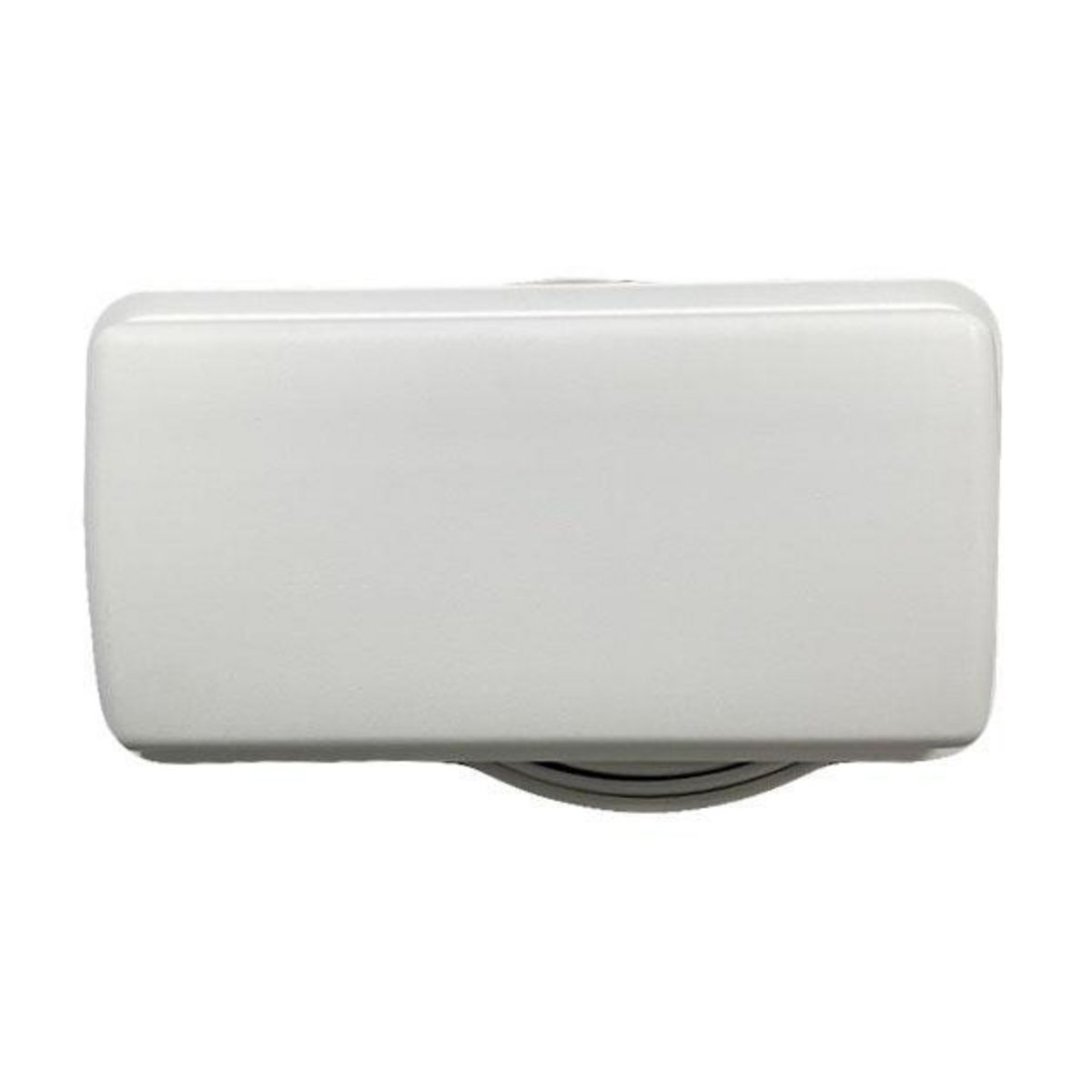

2.4/5 GHz 4 dBi 4 Element Indoor/Outdoor 90×90 Patch Antenna with RPSMA

ATS-02671 (former catalog number ATS-OHDP-245-4-4RPSP-36). The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with our integrated flush mount for surface mounting through a thin wall or enclosure door and also ships with our articulating wall and pole mount kit. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.

SKU: ATS-02671 Category:

Additional information

Dimensions279.4 × 50.8 mm
Vendor

AccelTex Solutions

Country of Origin

China

Antenna Gain

4/4 dBi

Beamwidth - Horizontal

90?/90?

Beamwidth - Vertical

90?/90?

Cable Length

910mm

Cable Type

ATS-195

Connector Type

RPSMA Plug

Installation Hole Diameter
Pole Diameter
Frequency Rating

2.4-2.5/4.9-5.85 GHz

Antenna Type

Patch Antenna

Impedance
Indoor/Outdoor

Indoor/Outdoor

Input Power - Max
Installation Type

Threaded Center Bolt w/ Nut & Articulating Wall/Pole Mount (included)

Isolation Loss
Radome Material

ASA

Number of Leads

4

Operating Temperature

-40 to 65 ?C

Polarisation

2 Vertical, 2 Horizontal

Protection Type
Standards

802.11ac (Wi-Fi 5), 802.11ax (Wi-Fi 6), 802.11n (Wi-Fi 4)

Voltage Ratio

<2

Windage

130 mph (209 km/h)


View Datasheet
