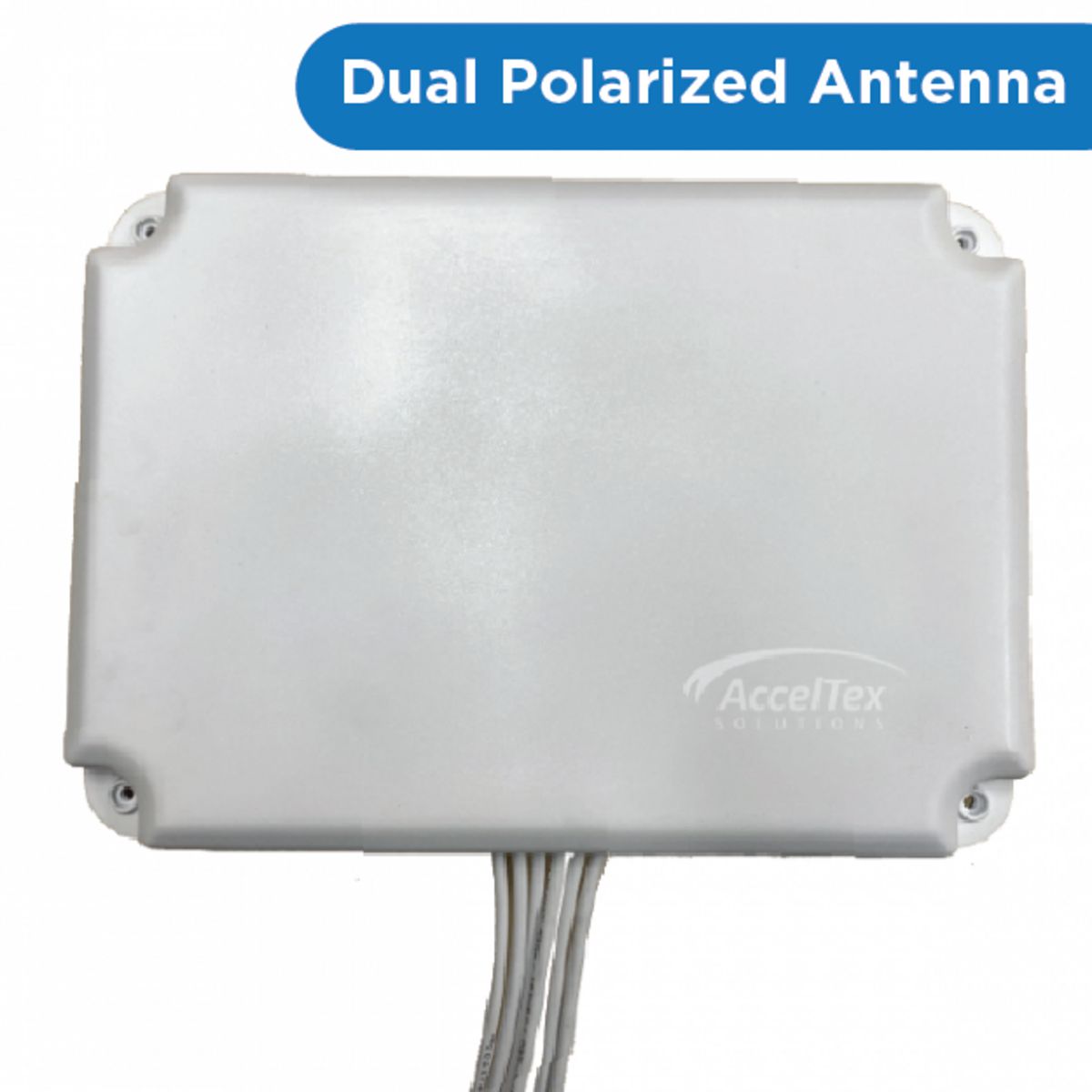

2.4/5 GHz 7 dBi 6 Element Dual Pol Indoor/Outdoor 60/60 Patch Antenna with RPSMA

ATS-01121 (former catalog number ATS-OP-245-7D-6RPSP-36). AccelTex Solutions 6 Element Dual Band Wi-Fi Indoor/Outdoor Patch Antenna with RPSMA Plug connector is a perfect compliment to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space.

SKU: ATS-01121 Categories: ,

Additional information

Dimensions309.9 × 221 × 40.6 mm
Vendor

AccelTex Solutions

Country of Origin

China

Antenna Gain

7 dBi

Beamwidth - Horizontal

66°/65°

Beamwidth - Vertical

66°/62°

Cable Length

910mm

Cable Type

RG402 Plen

Connector Type

RPSMA

Frequency Rating

2.4-2.485/5.15-5.85 GHz

Antenna Type

Patch Antenna

Impedance

50 Ohms

Indoor/Outdoor

Indoor/Outdoor

Installation Type

Flush Mount to Wall or Articulating Mount

Isolation Loss

˃30 dB

Radome Material

ABS

Number of Leads

6

Operating Temperature

-40 to 70 °C

Polarisation

3 Horizontal, 3 Vertical

Wi-Fi Standard

802.11ax (Wi-Fi 6), 802.11ac (Wi-Fi 5), 802.11n (Wi-Fi 4)

Voltage Ratio

≤1.5:1, Max 2.0

Windage

134 mph (216 km/h)
