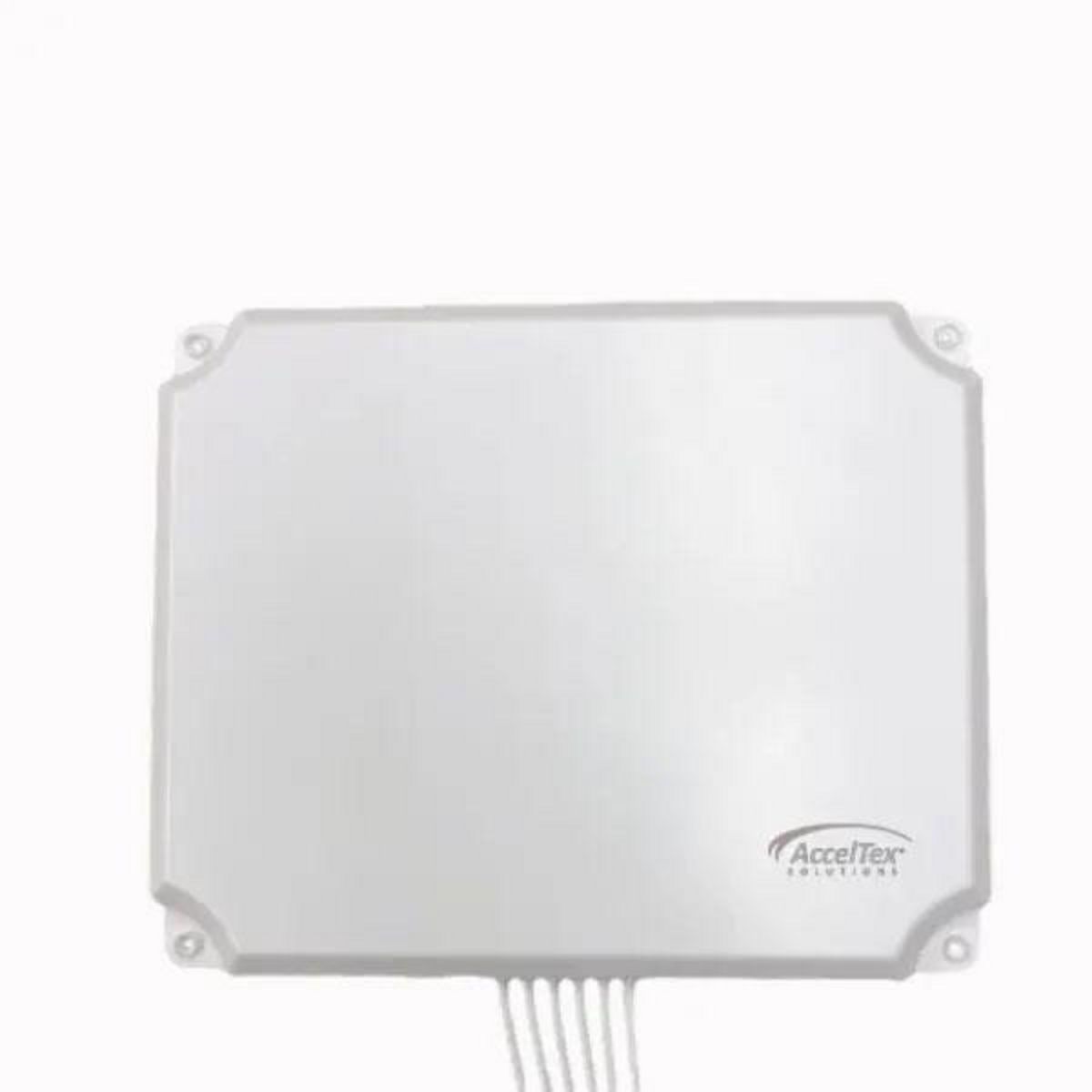

2.4/5 GHz 7 dBi 6 Element Indoor/Outdoor Patch Antenna with RPTNC

ATS-01114 (former catalog number ATS-OP-245-7-6RPTP-36). The AccelTex Solutions dual band indoor/outdoor 6-Element patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated mounting holes in the corners of the radome and leads exiting the bottom of the antenna for a flush wall mount. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.

SKU: ATS-01114 Categories: ,

Additional information

Dimensions320 × 170.2 × 35.1 mm
Vendor

AccelTex Solutions

Country of Origin

China

Antenna Gain

7/6 dBi

Beamwidth - Horizontal

100°/110°

Beamwidth - Vertical

59°/61°

Cable Length

910mm

Cable Type

ATS-200

Connector Type

RPTNC

Frequency Rating

2.4-2.5/4.9-5.85 GHz

Antenna Type

Patch Antenna

Indoor/Outdoor

Indoor/Outdoor

Installation Type

Flush Mount to Wall or Articulating Mount

Radome Material

ABS

Number of Leads

6

Operating Temperature

-40 to 65 °C

Polarisation

3 Horizontal, 3 Vertical

Wi-Fi Standard

802.11ax (Wi-Fi 6), 802.11ac (Wi-Fi 5), 802.11n (Wi-Fi 4)

Voltage Ratio

< 2.0:1

Windage

134 mph (216 km/h)


View Datasheet
