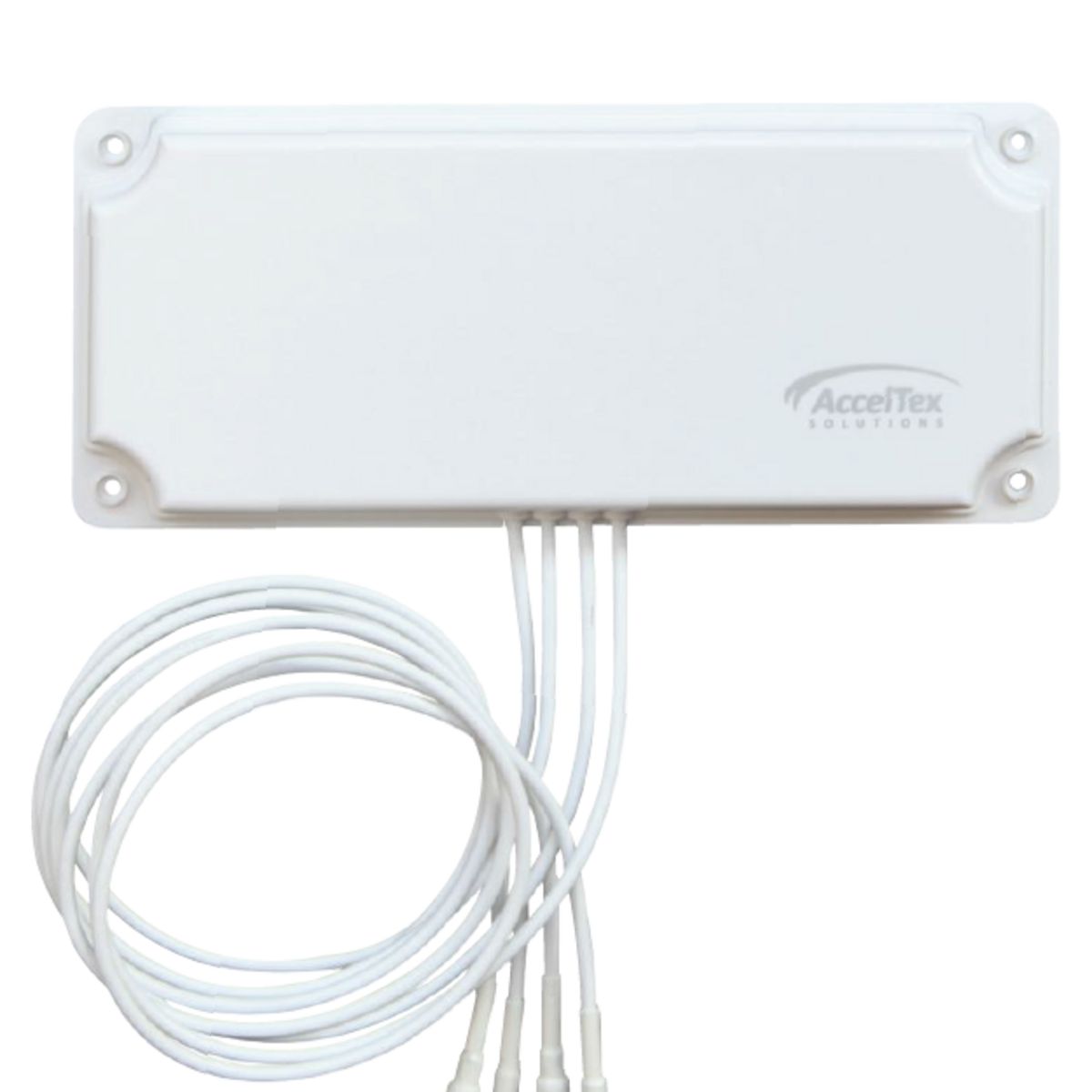

2.4/5 GHz 8 dBi 4 Element Indoor/Outdoor Patch Antenna with RPTNC

ATS-01125 (former catalog number ATS-OP-245-8-4RPTP-36). The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated mounting holes in the corners of the radome and leads exiting the bottom of the antenna for a flush wall mount. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired. We call this one our “Half Warehouse” antenna.

SKU: ATS-01125 Categories: ,

Additional information

Dimensions320 × 170.2 × 35.6 mm
Vendor

AccelTex Solutions

Country of Origin

China

Antenna Gain

8 dBi

Beamwidth - Horizontal

125°/114°

Beamwidth - Vertical

35°/24°

Cable Length

910mm

Cable Type

ATS-195

Connector Type

RPTNC

Frequency Rating

2.4-2.5/5.1-5.85 GHz

Antenna Type

Patch Antenna

Impedance

50 Ohms

Indoor/Outdoor

Indoor/Outdoor

Isolation Loss

˃20dB

Radome Material

ABS

Number of Leads

4

Operating Temperature

-40 to 70 °C

Polarisation

2 Horizontal, 2 Vertical

Wi-Fi Standard

802.11ax (Wi-Fi 6), 802.11ac (Wi-Fi 5), 802.11n (Wi-Fi 4)

Voltage Ratio

< 1.5:1, max 2.0


View Datasheet
