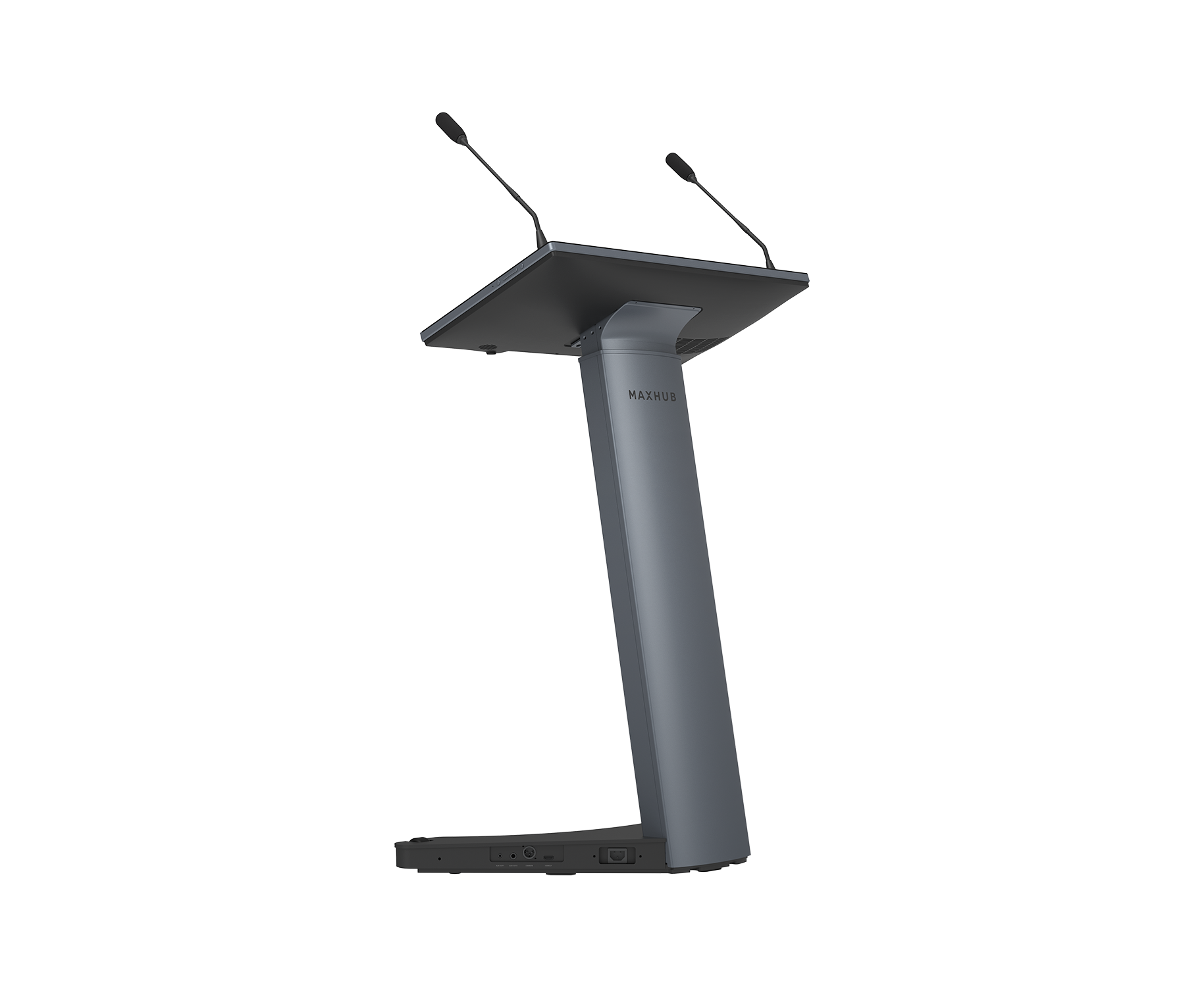

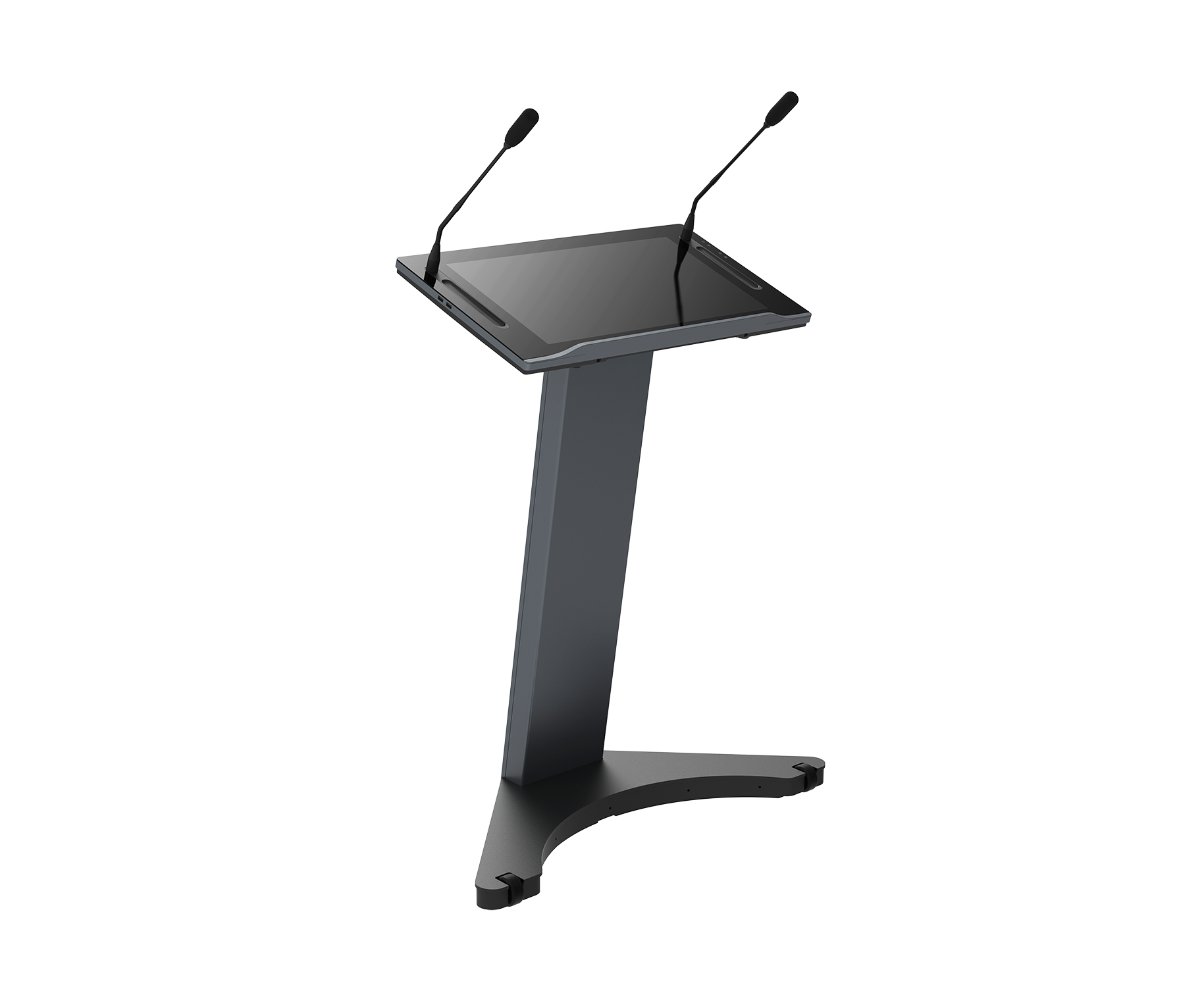

MAXHUB SL22MC Smart Lectern

An all-in-one smart device with a sleek design that integrates the functionality of a PC, microphone, and touchscreen into one conference lectern.

SKU: SL22MC Category:

Description

Exemplary All-in-One Lectern

A smart device with a sleek design that integrates the functionality of a PC, microphone, and touchscreen into one conference lectern.

  • Double gooseneck microphones
  • 21.5″ touch screen
  • Mobile casters
  • Electromagnetic writing pen
  • Electric adjustable stand
  • Capacitive + EMR Touch Technology
  • Smart Annotation

Screen Sharing, Reinvented

This smart conference lectern connects with mobile devices or laptops, and synchronises the screens with the onstage display.

  • Wireless Screen-sharing
  • Connect up to 8 devices for instant switch

Comfort is Key

The height adjustable lectern makes hand gestures, annotating, and presenting more comfortable. Designed with versatility in mind, the lectern electronically adjusts for heights from 3ft up to 6ft to accommodate different statures.

Additional information

Weight27 kg
Dimensions739 × 400 × 1200 mm
Vendor

MAXHUB

Screen Size

21.5 inches

Screen Type

IPS

Resolution

1920×1080

Refresh Rate

60Hz

Color Depth

8 bits

Touch Technology

P-Cap + EMR

Capacitive Touch Points

10

EMR Touch Points

1

Touch with

Stylus or Finger

Touch Accuracy for Stylus

±0.5 mm

Types of EMR Styli supported

SP08 Electro-magnetic Stylus/1024 Pressure Sensitivity

OS Version

Windows 10

CPU

Intel 8th i5 8250U

RAM

8GB

ROM

SSD 128GB

Display Connectors

HDMI Out: 1
Audio Out: 1
USB 2.0: 2
AC In: 1
DC In: 1
Buttons: 4 (Power, Go Up, Go Down, Microphones Switch)

Wireless Screen-Sharing

Transmission Delay: <133ms
Operating Distance: 12m
Operating Frequency: 2.4GHz/5GHz

Audio & Video

Power of Speakers: 2×3W
Gooseneck Microphones: 2
Microphone Pickup Distance: ≤20cm
Sensitivity of Microphones: -40dB±2dB
Microphones Input Frequency: 40Hz~16kHz
Microphones Sample Rates: 30kHz
