Additional information
| Dimensions | 88.9 × 88.9 × 12.7 mm |
|---|---|
| Vendor | AccelTex Solutions |
| Country of Origin | China |
| Connector Style 1 | RPSMA Plug |
| Connector Style 2 | RPSMA Plug |
| Dielectric Strength | 1000 V RMS |
| Durability | Greater than or equal to 500 Cycles |
| Frequency Rating | DC – 5.85 GHz |
| Impedance | 50 Ohms |
| Industry Standard(s) | IEC 60169-15 |
| Insulation R-Value | Greater than or equql to 5000 megaohms |
| Insulator Type | Teflon |
| Material - Body | Gold Plated Brass |
| Material - Contact Pin | Gold Plated Beryllium Copper |
| Mating | 1/4-36UNS-2B |
| Operating Temperature | -55 to 155 °C |

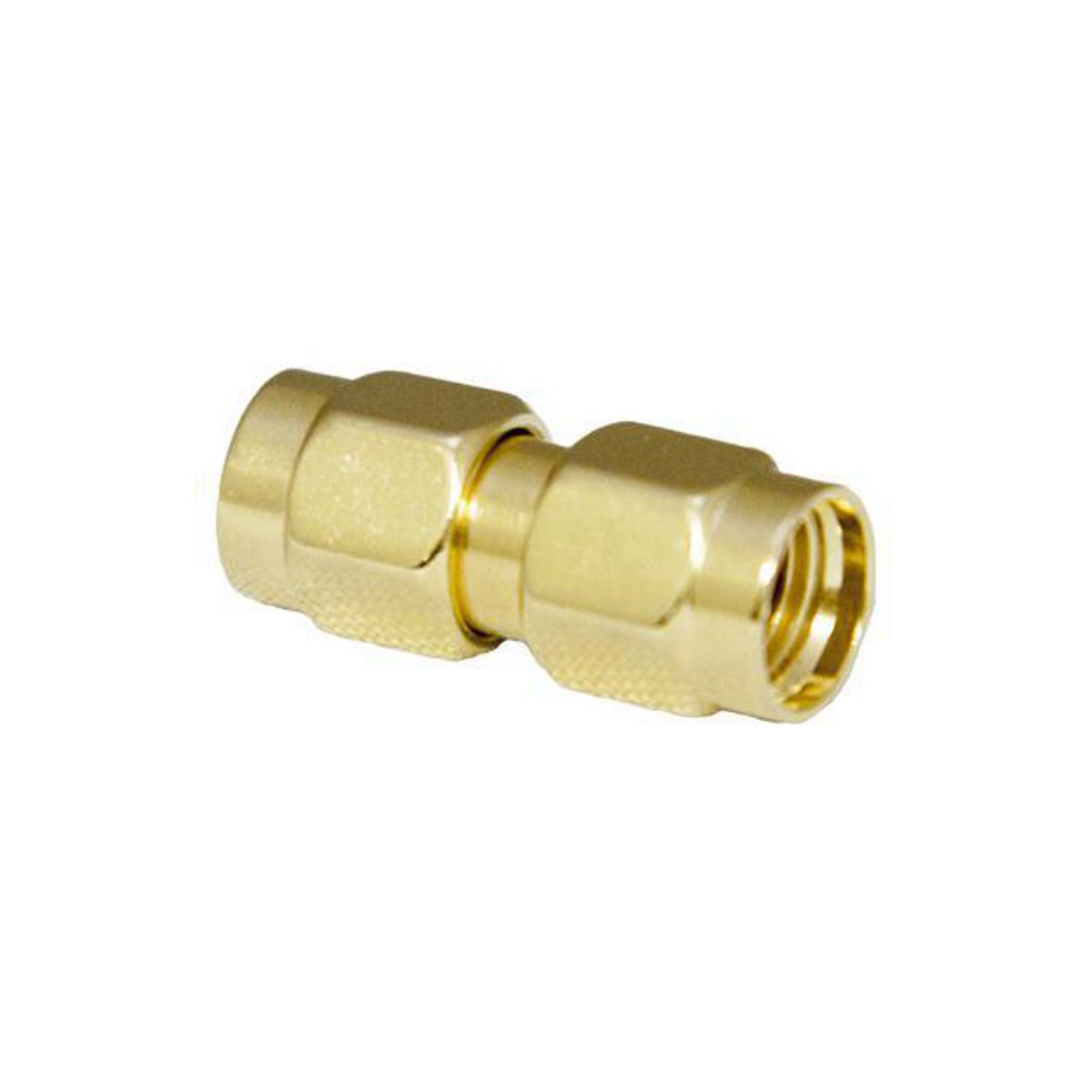

| Connectors | RPSMA Plug to RPSMA Plug |
| Voltage Ratio | ≤1.3 |
